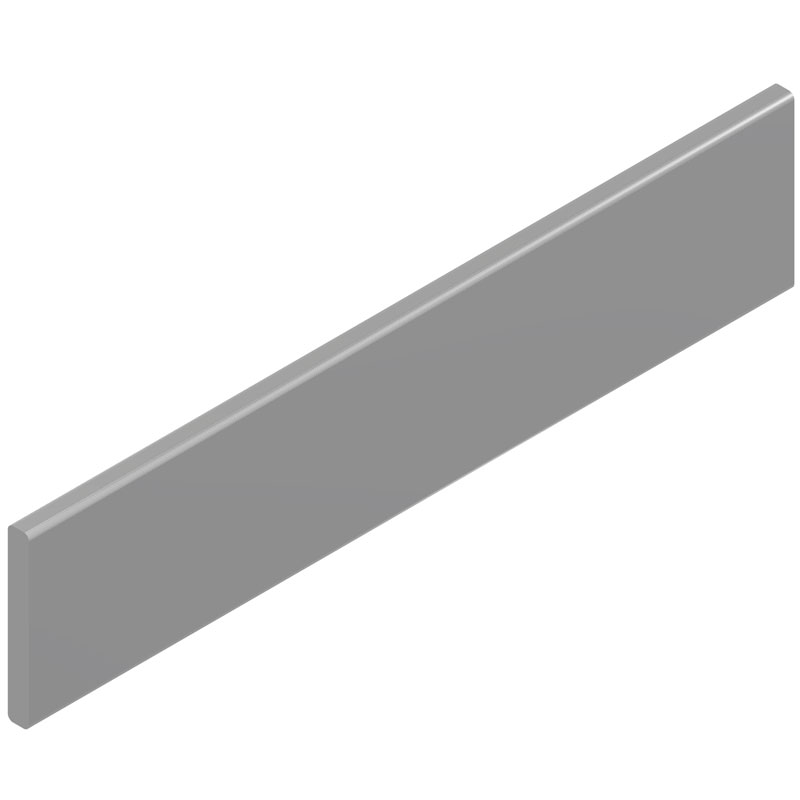

Aluminum Rectangular Bar

Rectangular shapes are the all-purpose rigid conductor for switchgear, control apparatus and busways. The use of multiple bar bus can provide a large surface area for heat dissipation. Joints and taps are easily made by bolting or welding; it is also easy to make off-sets and 90-degree bends.

eb2f08a1395942f5915fe791b69341bf

Features:

Only one-third the weight of copper
Highly corrosion resistant
Dissipates heat rapidly and evenly
Very strong yet lightweight
Easy to fabricate
Conducts equilent loads of eletric power with one-half as much material weight as copper

Applications:

6061-T6 alloy used in high strength applications
6063-T6 alloy used in higher current carrying applications
Indoor or outdoor use

Rectangular shapes are the all-purpose rigid conductor for switchgear, control apparatus and busways. The use of multiple bar bus can provide a large surface area for heat dissipation. Joints and taps are easily made by bolting or welding; it is also easy to make off-sets and 90-degree bends.

For direct current, the capacity of a rectangular bar bus conductor can be controlled by varying the size or number of bars in parallel. The same is true of alternating current up to certain limits. Special arrangements of laminations are used for high-amperage alternating current.
