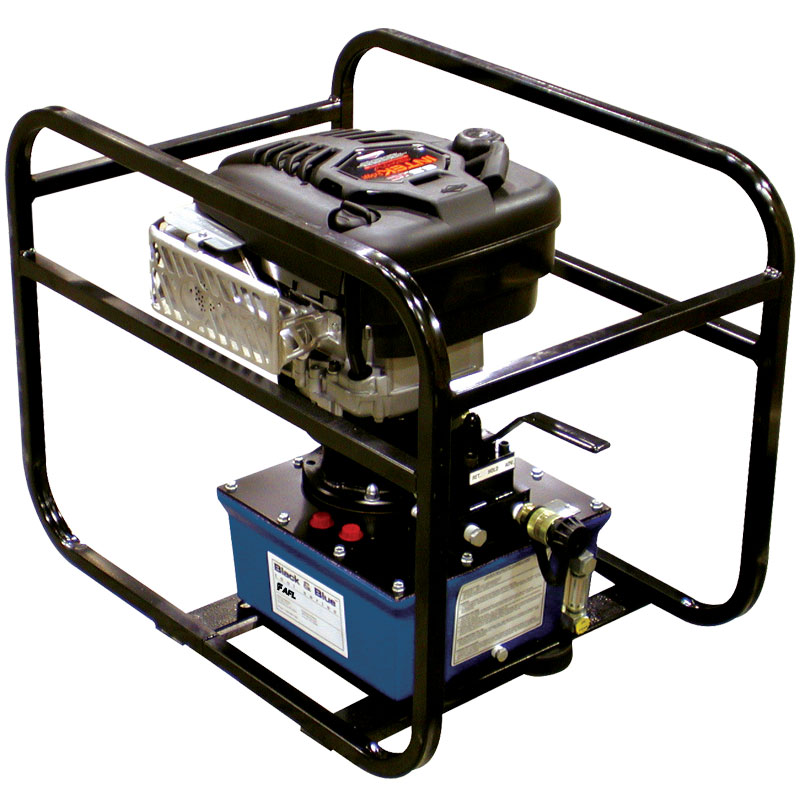

30GBM Gas Hydraulic Pump

The 30GBM is a gas powered pump that produces 10,000 PSI of hydraulic pressure. It is designed to operate any 10,000 PSI compression tool. The two-stage pumping system allows for rapid ram advance. The “suc-o-matic” valve helps tools retract faster. The manual control has three settings: advance, hold and retract. The 30GBM is designed for continuous duty.

7b10d17743844d738de0cd77a0cb2415

Features:

10,000 PSI high-pressure pump
Powered by a 6 HP Briggs and Stratton engine
Manual control valve
Designed to operate single acting tools only
High pressure relief valve
Pressure matched quick coupler supplied
Protective carrying cage
Sight gauge to determine hydraulic oil level
