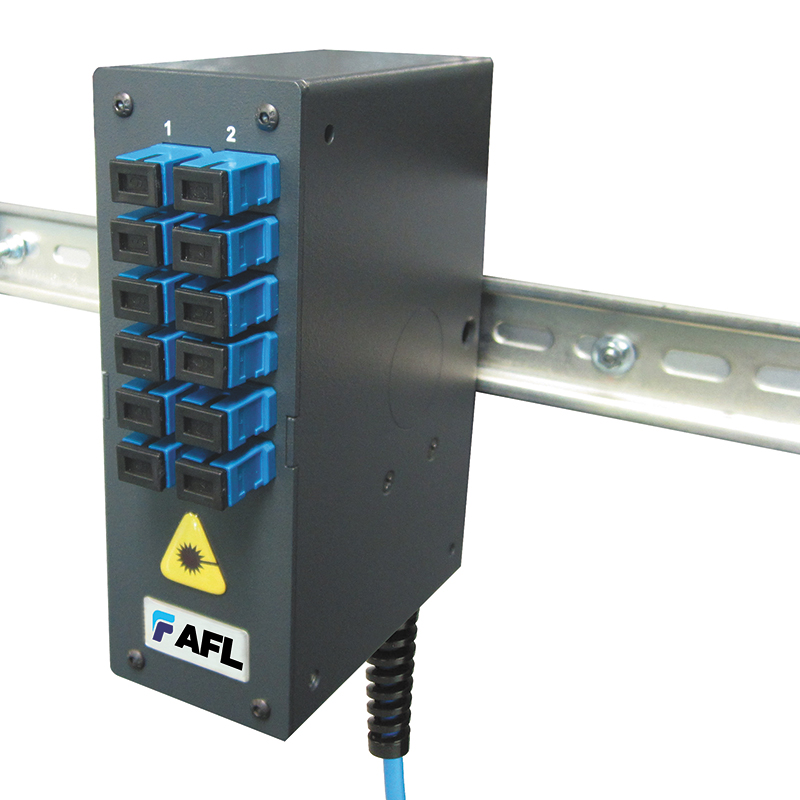

Mini DIN Rail Mounted Enclosure
Features:
- Small size making it very versatile
- Accommodates up to 12 or 24 x SC, ST or LC duplex adapters
- Ideal for housing pre-terminated loose tube and tight buffered cables
- Top and bottom cable entry to suit installation environment
Applications:
- Process automation and control
- Intelligent transport system
- Rail signalling and control networks
- Power systems and control
- MTP pre-terminated cabling solutions
PRODUCT DESCRIPTION
The Mini DIN Rail Mounted Enclosure's compact design gives it the ideal form factor for installation into densely populated industrial cabinets.
Technical Specifications
| DESCRIPTION | 12 PORT MINI DIN RAIL ENCLOSURE | 24 PORT (PATCH ONLY) MINI DIN RAIL ENCLOSURE |
| Dimensions W x H x D (mm) | 54.5 x 155 x 113 | 109 x 155 x 113 |
| Weight (lbs) | 1.5 | 3.0 |
| Maximum Number of Splices | 12 | N/A |
| Maximum Fiber Count (Front Panel) | 12 SC, ST and LC 24 | SC, ST |
| Incoming Cable Ports | 1 top and bottom | 2 top and bottom (includes internal routing hole for single cable 24 fiber installation) |
| Material and Color | Powder coated Mercury Grey | |
| Standard Accessories | Cable gland, central strain relief post, DIN rail mounting clip, laser badge, fiber clips and through adapters | |
