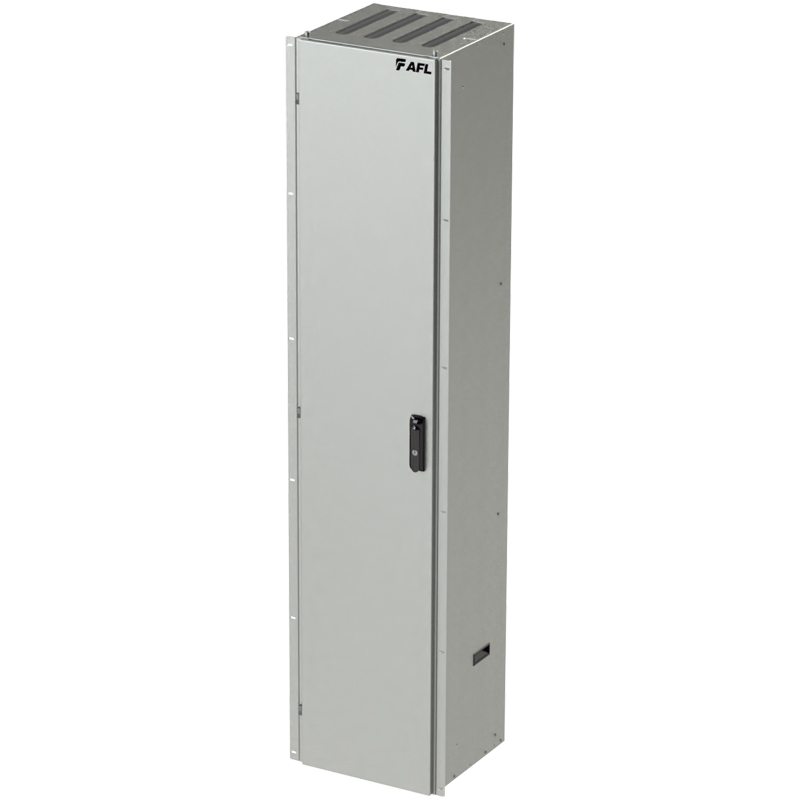

UHFC MPO Patch Frame
Features
- Top cable entry with 4 cable brackets
- Each bracket supports 12 x 20 mm cable or 6 x 38 mm cable max
- Rotatable spool flange for easier cable routing
- 12 patch trays with 24 MPO adapters each for 288 ports version
- 10 patch trays with 24 MPO adapters each for 240 ports version
- Trays slide out for easy port access
- Key-up to key-down adapters
- Waterfall on patch tray edge for fiber bending protection
- Vertical adapter plate design allows easy access to connectors
- Label tabs on the inside of front door
- Mounts to a standard 19-inch rack
- Floor mount or wall mount kits provided
PRODUCT DESCRIPTION
The UHFC MPO Patch Frame is designed for high density optical fiber interconnection. The upper part of the frame is for cable entry and slack management. Cable brackets at the entry hold inbound and outbound cables. Spools and side rails are available for cable management. The lower part of the frame is for MPO connector patching. There are two variants of 240 ports and 288 ports offered for this patch frame. The 240-port variant is with 10 patch trays, each with 24 MPO adapters. The 288-port variant is with 12 patch trays.
The frame can be installed on standard 19” rack. With the mounting kits provided in the package, it can be floor mounted or wall mounted.
