AFL’s Splice-on-Connector Tool-Kit is the advanced solution for 900 μm fiber splicing on connectors. This Tool-Kit is exclusively used for 900 μm coating diameter, splice-on-connector applications but can be utilized for splicing of fiber-to-fiber of coating diameters ranging from 160 μm to 3 mm. The simultaneous fiber preparation capability is targeted to 250 μm coating diameters.

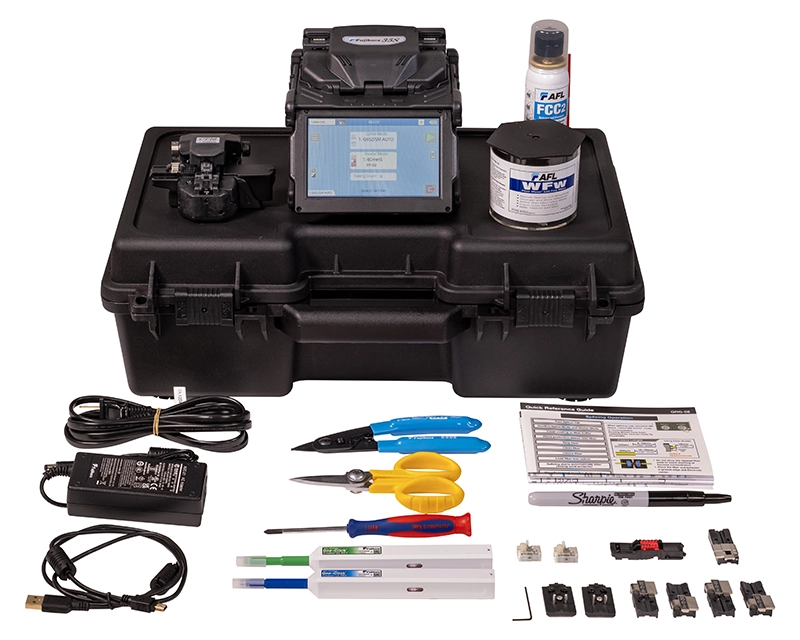

All-in-one cost-saving kit: Contains the light weight, cost-effective, time saving and strong cladding alignment Fujikura 35S Fusion Splicer, the CT-16 Cleaver, best in line One-Click® cleaners and preparation accessories such as Kevlar sheers, wipes, cleaning solution and many more.

Significant splicing cycle time reduction: AFL’s Fujikura 35S cladding alignment fusion splicer excels in small to mid-fiber count applications, featuring simultaneous fiber prep, sheath clamp automation, automated wind protector, and faster tube oven heating. This reduces fusion splicing cycle time by ~30% or more.

The hand-held fiber coating stripper is capable of stripping two 250 μm coated fibers in one pass. AFL’s CT-16 cleaver is best known for its durable construction, lightweight form factor, easily replaceable cleaver blades and one-click cleaver action.

Pro-level cleaning supplies: The cleaning supplies provided in this kit are top-of-the-line Fujikura One-Click cleaners for both LC and SC style needs, FCC2 Enhanced Fiber Connector Cleaner and Preparation Fluid for easy and safe cleaning, and lint-free cleaning wipes.

Ergonomic and user-friendly: Keeping users in mind, AFL’s Fujikura splicer is designed ergonomically for the best user experience. It features an adjustable touchscreen mirror to work in abnormal positions, a compact size suitable for small tight spaces, and automatic fiber placement error adjustments. The machine can adjust the fiber automatically over the v-grooves without manual intervention. Additionally, it offers easy access to the battery with the ability to swap it when needed.

Backed by the best service team in the industry, the Fujikura 35S is the ideal splicer to use when portability, ruggedness, speed, and reliability are needed. If you’d like to see the AFL Splice-on-Connector Tool-Kit capabilities first-hand, please contact us at 1-800-235-3423 to arrange a product demonstration at your earliest convenience.
