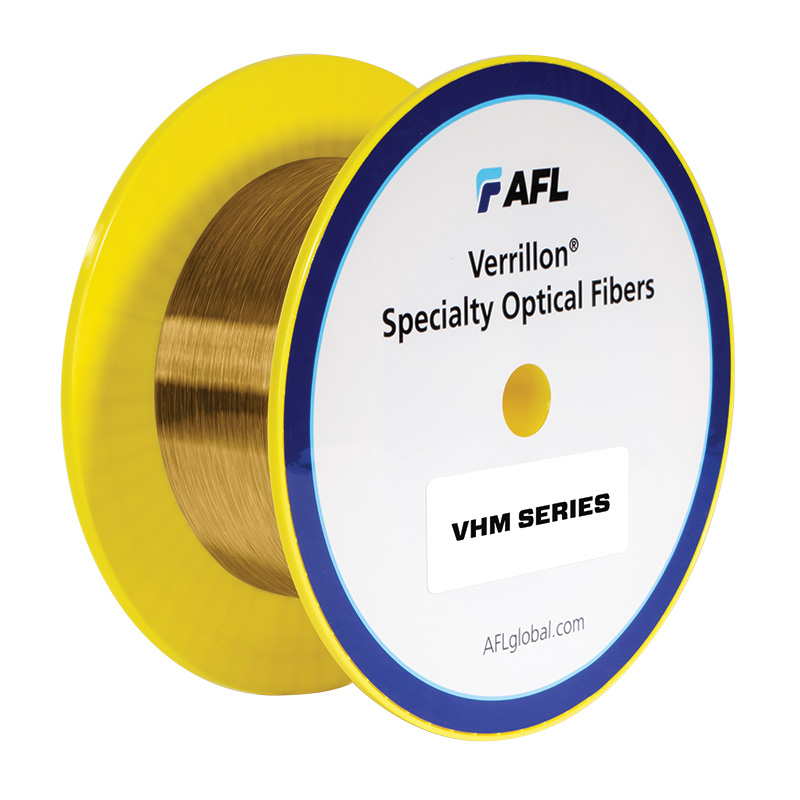

VHM3000 Series Harsh Environment Fibers

Verrillon® VHM3000 Series of Graded-Index (GI) multimode optical fibers are suitable for high temperature applications up to 300°C in hydrogen containing environments. The high bandwidth of these fibers allows Distributed Temperature Sensing (DTS) systems to achieve extremely short spatial resolution in multi-kilometer deep/long deployments.

adfa2a922fb9478cb55f3a318744bea3

Features:

50/125 graded-index multimode fiber for harsh environments such as oil wells
Excellent resistance to hydrogen darkening at high temperatures and partial pressures of hydrogen
High bandwidth allows sensor systems to achieve extremely short spatial resolutions
Suitable for downhole temperature monitoring applications
Excellent for DTS systems operating in the 1064nm spectral region
Available in all Verrillon’s harsh environments coatings including carbon coating

175° Coating - Carbon/Silicone/Mid-Temp Acrylate Coating (CSMTA),VHM5000 Series Harsh Environment Fibers,VHT500 Single-mode Series,VHM7000 Series Fibers,VHM4000 Series Harsh Environment Fibers,VHM2000 Series Harsh Environment Fibers,VHS700 Series Harsh Environment Fibers,VHS500 Series Harsh Environment Fibers,VHS100 Series Harsh Environment Fibers,VHT5000 Multimode Series,Medical Sensing Fibers,Near-Infrared (NIR) Medical Laser Delivery Fibers,UV-Visible (UV-Vis) Medical Laser Delivery Fibers,VPZ600 Single-Polarization Fibers

1715

VHM3000 Series Harsh Environment Fibers

Features:

50/125 graded-index multimode fiber for harsh environments such as oil wells
Excellent resistance to hydrogen darkening at high temperatures and partial pressures of hydrogen
High bandwidth allows sensor systems to achieve extremely short spatial resolutions
Suitable for downhole temperature monitoring applications
Excellent for DTS systems operating in the 1064nm spectral region
Available in all Verrillon’s harsh environments coatings including carbon coating

PRODUCT DESCRIPTION

Verrillon® VHM3000 Series is a family of graded-index multimode fibers exhibiting exceptional resistance to hydrogen at high temperatures in hydrogen-rich applications. The true hydrogen resistance is a result of modified glass chemistry. Additionally, the graded-index design provides very high bandwidth for optimum DTS measurement in downhole applications. The VHM3000 Series is available with a variety of Verrillon coatings including Polyimide, Silicone/PFA and Mid-Temp acrylates. Typically, these fibers are used in down-hole data logging, distributed sensing and imaging applications.
