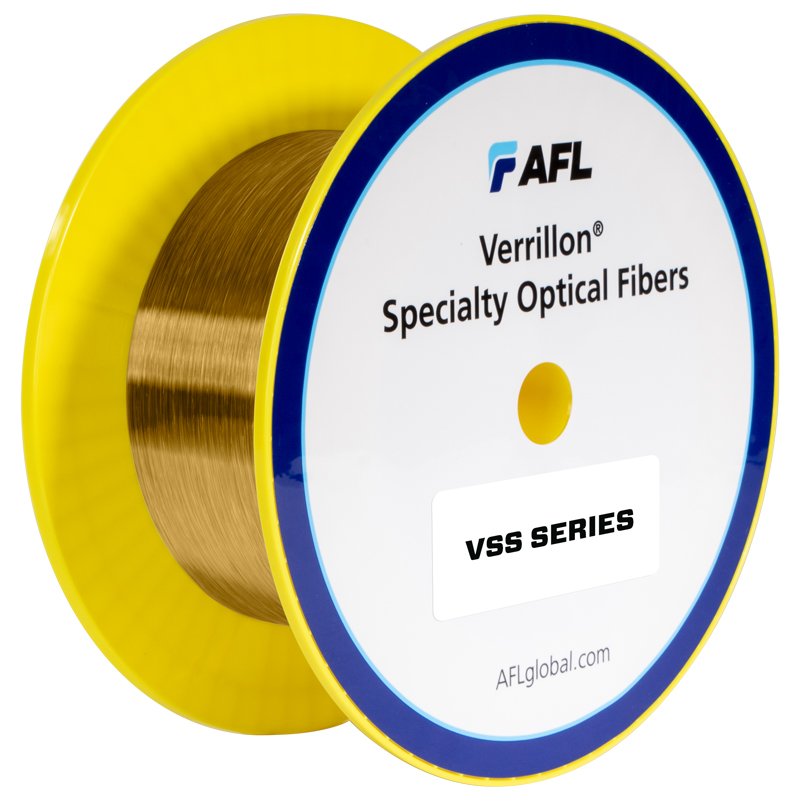

VSS200 Series Single-mode Fiber

Verrillon® VSS200 Series 125/155 μm Polyimide Fiber is a high numerical aperture (NA) single-mode fiber designed for a wide range of applications including sensing, illumination and communications. The high-temperature polyimide coating allows this fiber to be used in applications up to 300°C.

da68871b594545af910234240c34c2c1

Features:

High Numerical Aperture
Extremely low bend loss
High temperature coating up to 300°C
Available in low and mid-temperature coatings
Suitable for FBG writing due its high photosensitivity

Applications:

Communications Networks
Optical fused devices
Illumination
Sensors
Fiber pigtails

Verrillon® VSS200 Series 125/155 μm Polyimide Fiber is a high numerical aperture (NA) single-mode fiber designed for a wide range of applications including sensing, illumination and communications. The high-temperature polyimide coating allows this fiber to be used in applications up to 300°C. Due to its 0.21 numerical aperture, this fiber exhibits exceptionally low bend-loss. The high germanium content also provides photosensitivity to UV light, useful in Fiber Bragg Grating (FBG) writing for sensing applications. In addition to polyimide, this fiber is also available in all Verrillon coatings and coating combinations for low and mid-temperature range.
