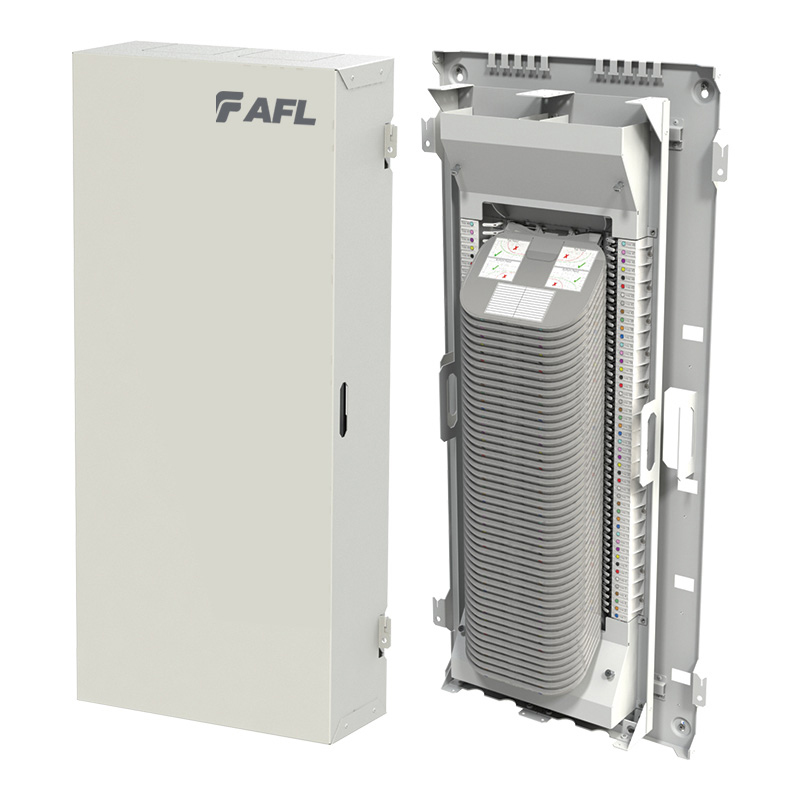

6912 Fiber Mass-Fusion Splice Wall Cabinet
Features:
- Up to maximum of 6912 fibers
- Mass-fusion splices for traditional ribbon and SWR fiber with option for standard fiber optic cables
- Interchangeable cable tie-off brackets accommodate flexibility for various sizes of entry/exit cables
- Easy-lift-off cover to access the Splice Tray Modular Backboard
- Holes available for security padlock to secure cover to Splice Tray Modular Backboard
- Adjustable working tray mounts in variable heights for easy storage in cabinet cover
- Inside cabinet and outside cabinet pass-through space options allow cable management when using multiple splice cabinets
Applications:
- Building entrance facility
- Data Center
- Hyperscale
- Telecommunications
The 6912 Fiber Mass-Fusion Splice Wall Cabinet is designed for use in a building entrance facility, providing an enclosure to splice ultra-high fiber count outside plant (OSP) cables to inside plant (ISP) cables.This lightweight and flexible cabinet provides a space-saving and cost-effective solution for easy installation by one person. Pass-through space provides cable routing for the installation of multiple cabinets.
The cabinet features 48 leaf-style trays which allow 144 fiber mass-fusion splices per tray and a raceway and manifold system which ensures the 250 μm fiber is protected at all times.
There are various cable entry options at both top and bottom with modular tie-off points allowing up to 8 x Ø34 mm at a time. This Mass-Fusion Splice Wall Cabinet has the capacity to splice up to 6912F SpiderWeb Ribbon® (SWR®) and traditional ribbon cables. The cabinet can also be adapted to accommodate standard optical fiber by purchasing our standard fiber optic splice tray which allows 36 splices per tray and a maximum of 864 fibers.
