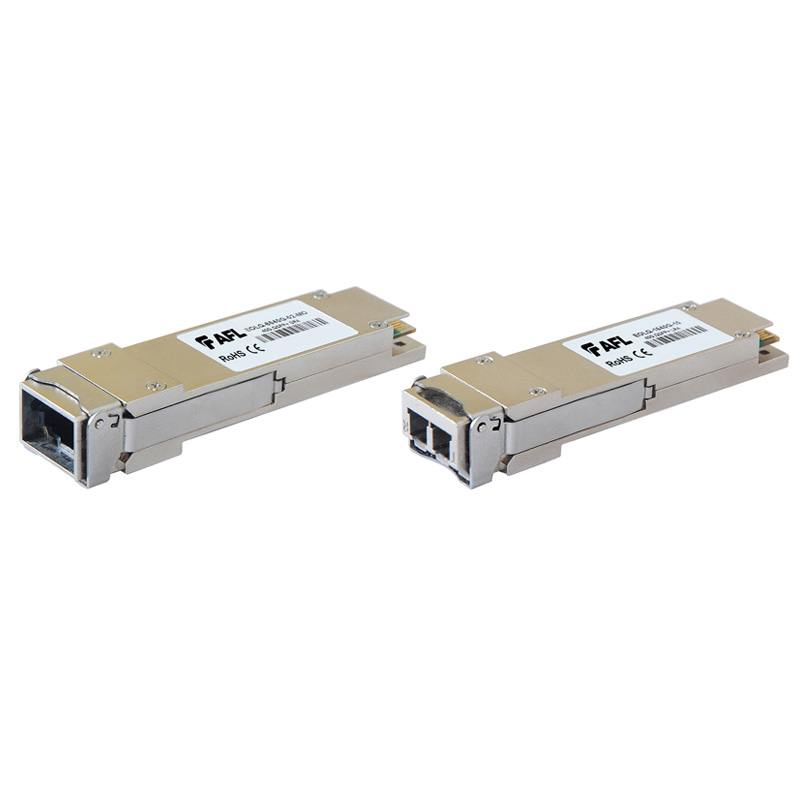

40G QSFP Transceivers

AFL QSFP transceivers and direct attached cable are four channel devices capable of data rates up to 40Gbps using 4 x 10Gbps parallel laneways in both directions.

9c7fe138d7b643a6bb7de009c848d1a8

Features:

Data rates up to 40 GB per second
Up to 100m OM3, 150m OM4 & 40km SM transmission distance
Compliant with QSFP+ MSA and SFF-8436
Operating case temperature 0°C to 70°C
Digital Diagnostic Monitoring

Applications:

40G Interconnect
Infiniband QDR & DDR
LAN & Telecom Backplane

AFL 40G QSFP transceivers and direct-attached cables are four channel devices capable of data rates up to 40 Gbps using 4 x 10 Gbps parallel laneways in both directions. AFL QSFPs are available in multi-mode (MTP/MPO) and singlemode (duplex LC) versions and are ideally suited to high performance networking environments.
