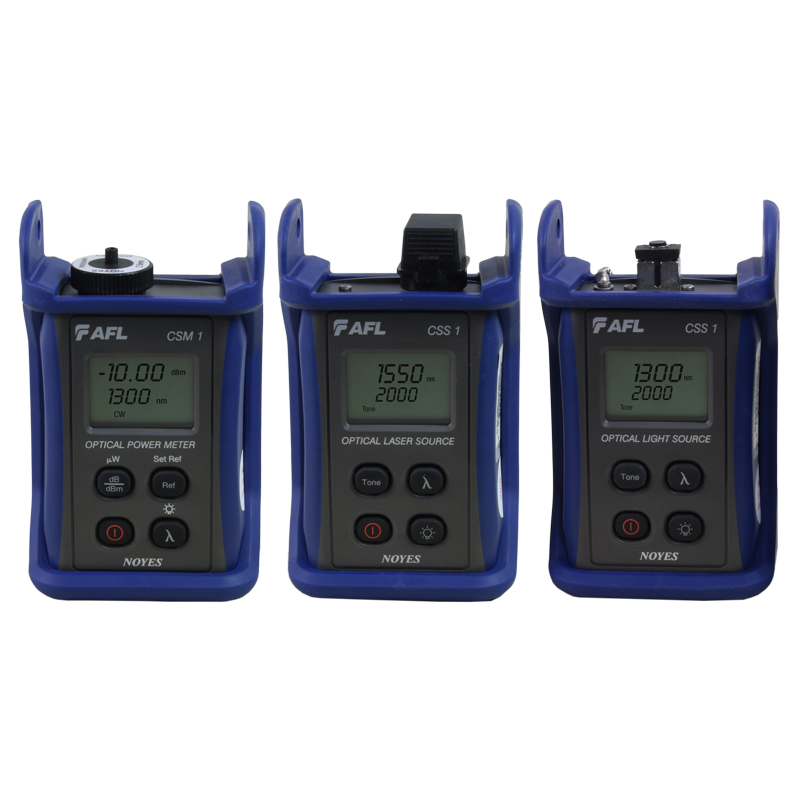

Contractor Series Light Sources and Power Meters

Contractor Series Optical Light Sources and Power Meters: palm-sized tools designed for testing single-mode and multimode fibre network links. Weighing only 0.4 lb, Contractor Series units are ideal for field use.

87674e6d0c63437e93cdb6a19ec1b87d,498b1ef3dab54343a6dc8ba70fa1aa0c

Features:

Palm-sized rugged, dependable tools
Industry-leading 5-Year Warranty
Cost-effective, easy to use
Auto-off to maximise battery life on Power Meter

Applications:

Link loss measurements
Certify SM & MM links to industry standards
Continuity check and fibre identification prior to fusion splicing

Contractor Series Light Sources and Power Meters are rugged test instruments designed with a simple user interface and backed by an industry-leading 5-year warranty. Both single-mode and multimode kit options provide tools for measuring network insertion loss, continuity checks, and fibre identification.

CSM1 Power Meter

Four models provide wide wavelength and power level ranges
Stores optical references for each calibrated wavelength
Auto-detects Test Tones for use in fibre identification
Optical input port accepts a variety of thread-on adapter caps

CSS1-SM Laser Source

1310 nm and 1550 nm LASER output from single test port
Output port accepts UCI threaded adapters (FC, SC, ST, LC) for flexibility and access to launch fibre for cleaning and inspection

CSS1-MM LED Source

850 nm and 1300 nm LED output from single test port
50 μm and 62.5 μm mandrels included
Test Tones (2000, 1000, 330, 270 Hz) for fibre identification
Use power meters when technician has fibre end access

CSS1 Sources Transmit:

CW continuous wave output (DC)
Test Tones (2000, 1000, 330, 270 Hz) for fibre identification
Use power meters when technician has fibre end access
Use OFI (optical fibre identifier) for mid-span testing

See specification sheet for full list of models and optional accessories.
